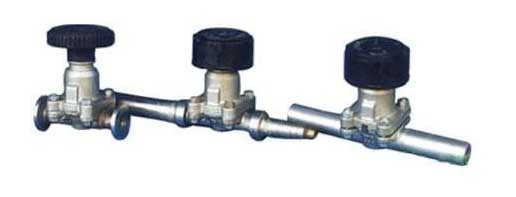

GM系列高真空隔膜閥 |
一、主要技術規范
|
適用范圍Pa |
105～1.3×10ˉ4 |
|
漏率Pa.L/S |
6.7×10ˉ4 |
|
介質溫度℃ |
隔膜為丁腈橡膠時-25～+80 |
|
隔膜為氟橡膠時-30～+150 |
二、技術規范
|
零件名稱 |
材料 |
|
閥體 |
碳鋼、不銹鋼 |
|
隔膜 |
丁腈橡膠、氟膠 |
|
閥桿 |
不銹鋼 |
三、連接法蘭標準按GB6070或GB4982規定，也可為連接管焊接型式
四、形形及連接尺寸
Ⅰ型連接管焊接隔膜閥外形及連接尺寸
|
型號，尺寸 |
DN |
D |
H |
A |
L |
L1 |
|
GM-10C-H(I) |
10 |
19 |
80 |
55 |
240 |
120 |
|
GM-25C-H(I) |
25 |
32 |
105 |
80 |
240 |
120 |
|
GN-40C-H |
40 |
45 |
133 |
100 |
240 |
120 |
|
GM-50C-H |
50 |
57 |
157 |
100 |
240 |
120 |
|
GM-10D-H(I) |
10 |
19 |
77.5 |
50 |
150 |
150 |
|
GM-25D-H(I) |
25 |
32 |
105 |
60 |
75 |
75 |
|
| |
|
| |
|
 |
 |
